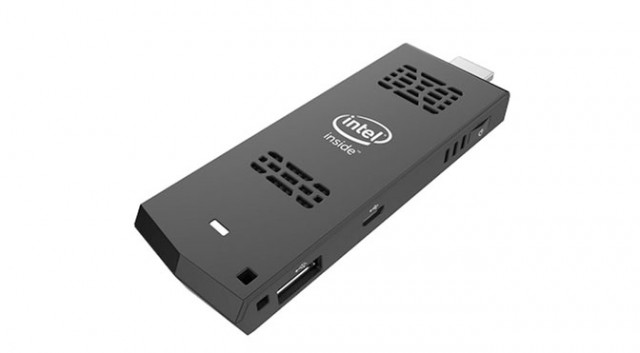

Intel Compute Stick NH1 – Specs and Photos

Intel Compute Stick NH1 – Specs and Photos

Intel announced a tiny computer called Quanta that plugs directly into your TV or monitor’s HDMI Port. Here are the proposed specs, photos and more information will be added as they become available.

The Intel Compute Stick NH1 combined with Media software will compete directly with AppleTV, Roku, Android TV and other SmartTV OS platforms.

Specification

FunctionSpec description
CPUIntel Bay Trail T-CR SoC Atom Z3735F
PMICDollar Cove AXP288
Memory2GB DDR3L
StorageeMMC 16GB/32GB/64GB
Expandable StorageMicro SD Card slot
DisplayHDMI (Male connector)
WifiIEEE 802.11bgn
BluetoothBluetooth 4.0, HS uART(Single Wifi/Bluetooth combo chip)
Antenna30mm x 6.5mm x 2mm, U shape dipole antenna
USB2.0USB2.0 cut type A x 1
Power InputMicro-USB 2.0 B connector
Power ButtonYes
Adaptor10W(5V/2A)
BIOS2MB
LED IndicationPower status indicator
OSWindows(Win 8.1 with Bing, 32bit)
Accessory20cm HDMI cable(optional)
Dimension110.9mm x 38 mm x 9.8mm(HDMI connector included)

I’m curious to see if this device can derive it’s power from the HDMI port alone or will always rely on an external power source plugged into the Micro-USB port.  Intel says the computer will come in two version, a Windows 10 powered version for around $149 and a Ubuntu Linux powered version for around $89.

Intel Compute Stick NH1 Photos coming soon

intel_compute_stick_specs
Intel Compute Stick Dimensions and Ports
Quanta - Intel Compute Stick NH1

Compute Stick NH1 Product page at intel.com

Pre-Order from Amazon.com

  • Just a quick update, The Intel Compute Stick will be available May 20th and you can currently preorder at bhpoto. I will post more photos once it arrives.
